Vacuum chuck
Tri-N has compounding and manufacturing capacity for Porous Ceramic.
- Resistance-Control Porous Ceramic Manufacturing Technology
- Resistance-Control Porous Ceramic Vacuum Chuck Manufacturing Technology
- Part Manufacturing Technology using Ceramics
-

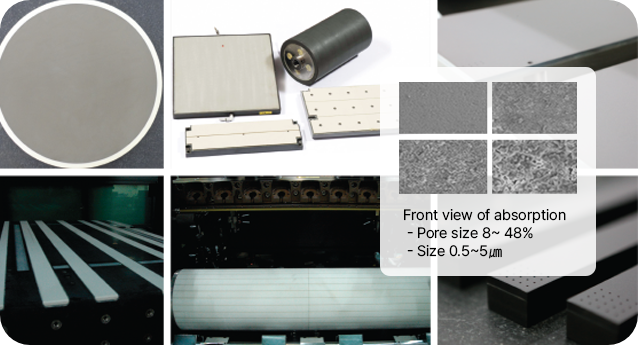

Anti-Static Porous Ceramics (Patent 10-1692219)
- It can be applied to Air Bearings, Ceramic Chucks and Air Floating Systems for FPD and Semiconductor by controlling Pore Size (1~20 ㎛) and Porosity (10~48%)
- Ceramic Air Bearing and Ceramic Chuck
- Homogeneous Pore Distribution enables High-Precision Floating and Chucking
- Vibration on Precision Floating: less than 5 ㎛
- No Particle Issue (due to High Temp. Sintering Process)

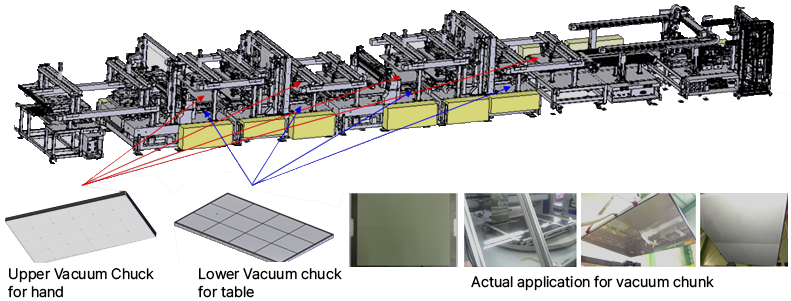

FPD Antistatic Ceramic Vacuum Chuck application example

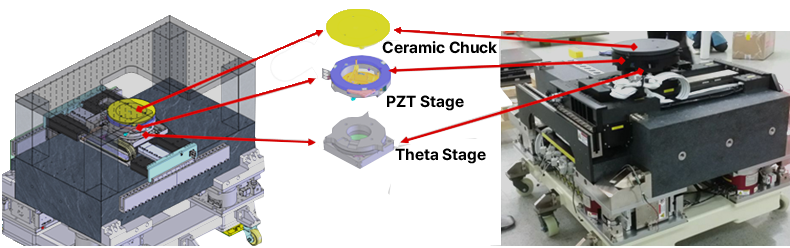

Semi Conductor Ceramic Chuck Application
