Air Floating System
Tri-N has design and build up capacity for Orifice
and Porous type Air Floating System.
and Porous type Air Floating System.
The Air Floating System uses compressed air to transport the material to a non-contact conveying device
Core Technology of Air Floating System
- Porous Ceramic
- Transport Material is floating with uniformed pressure comparing orifice(Porous Rate and Penetration Rate must be uniformed)
- Antistatic Function
- Prevention of defective by static electricity
- Strength Improvement
- Porous material with a bending strength of 80 MPa or more

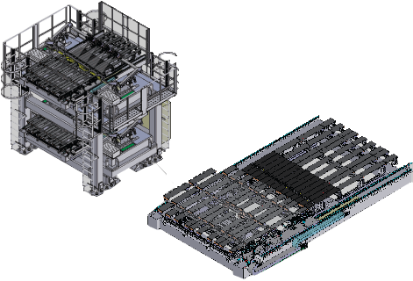

FPD Device Air Floating System

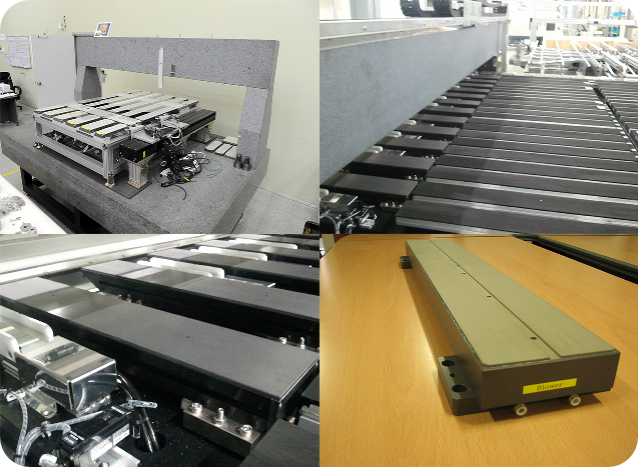

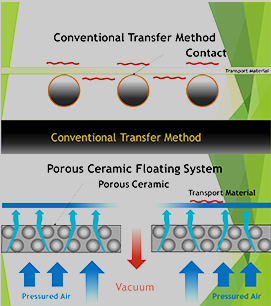

Porous Air Floating System
Advantages of Air Floating
- Protection from surface scratch when transferring glasses
- Prevention from Mura Defect due to glass deformation due to flatness and heat imbalance
Figure2

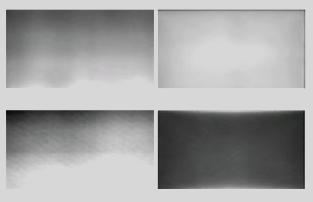

<a>Cluster Mura; <b>Vertical Band Mura
<c>Rubbing Mura; <d>Light Leak Mura
Example of Mura Defect

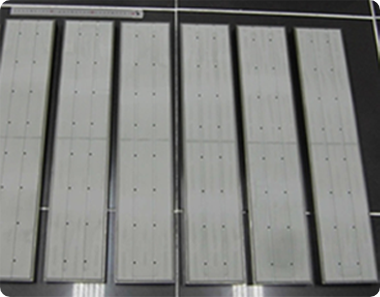

Porous Ceramic Floating System

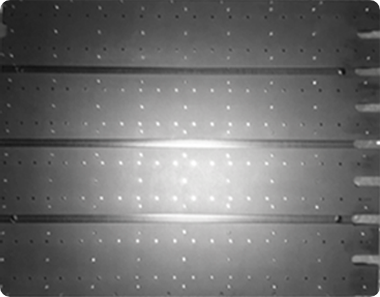

Orifice Type Floating System
